Технические данные:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |

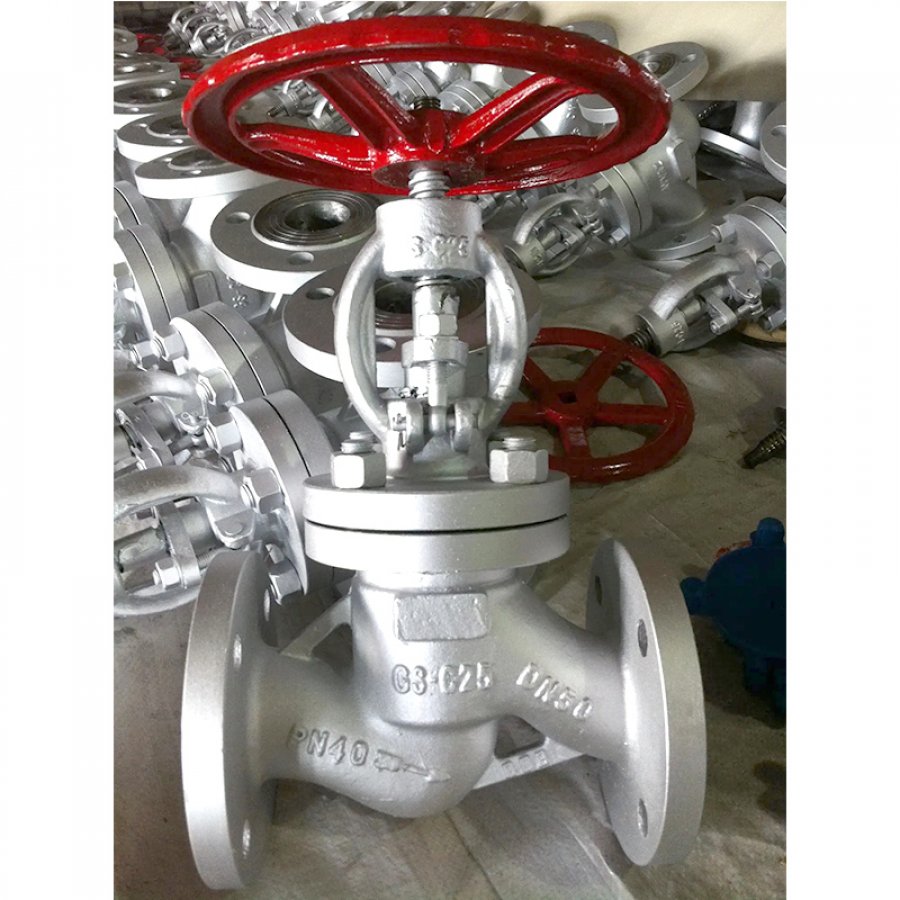

GLOBE VALVE-STRAIGHT-BONNET DIN LENGTH-SDNR TYPE | PN4-PN40(as mentioned n DIN86252) | 15-600 | water,ol and steam,high pressure liquids. |
Материал основных частей:
Item | Parts Name | Material |
1 | Body | Cast steel /Stainless steel (AlSI316) |
2 | Stem/seat | Stainless steel |
3 | Design | DINEN13709 SDNR Type (DIN 3356） |
4 | Face to Face | EN558 Series 1(DIN3202F1) |
5 | Flange Dimension | DIN Flanges acc.to EN 1092-1/B(DIN 2501) |
6 | Temperature | -10℃~+300℃ |
РАЗМЕРЫ:
DN（mm） | OD PN10 | OD PN16 | OD PN25 | OD PN40 | L（mm） | H（mm） | OR（mm） | Weight （kg） |
15 | 95 | 95 | 95 | 95 | 130 | 165 | 120 | 4.0 |
20 | 105 | 105 | 105 | 105 | 150 | 165 | 120 | 4.5 |
25 | 115 | 115 | 115 | 115 | 160 | 175 | 140 | 5.0 |
32 | 140 | 140 | 140 | 140 | 180 | 180 | 140 | 7.0 |
40 | 150 | 150 | 150 | 150 | 200 | 215 | 160 | 11 |
50 | 165 | 165 | 165 | 165 | 230 | 225 | 160 | 13 |
65 | 185 | 185 | 185 | 185 | 290 | 245 | 180 | 19 |
80 | 200 | 200 | 200 | 200 | 310 | 290 | 200 | 25 |
100 | 220 | 220 | 235 | 235 | 350 | 330 | 225 | 35 |
125 | 250 | 250 | 270 | 270 | 400 | 360 | 250 | 58 |
150 | 285 | 285 | 300 | 300 | 480 | 420 | 300 | 80 |
175 | 315 | 315 | 330 | 350 | 550 | 495 | 400 | 125 |
200 | 340 | 340 | 360 | 375 | 600 | 505 | 400 | 145 |
250 | 395 | 405 | 425 | 450 | 730 | 600 | 520 | 230 |
300 | 445 | 460 | 485 | 515 | 850 | 670 | 520 | 330 |
350 | 505 | 520 | 555 | 580 | 980 | 755 | 640 | 440 |
400 | 565 | 580 | 620 | 660 | 1100 | 830 | 640 | 605 |
450 | 615 | 640 | 670 | 685 | 1200 | 920 | 640 | 750 |
500 | 670 | 715 | 730 | 755 | 1250 | 970 | 640 | 900 |
600 | 780 | 840 | 845 | 890 | 1450 | 1200 | 640 | 1130 |
