Технические данные:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |

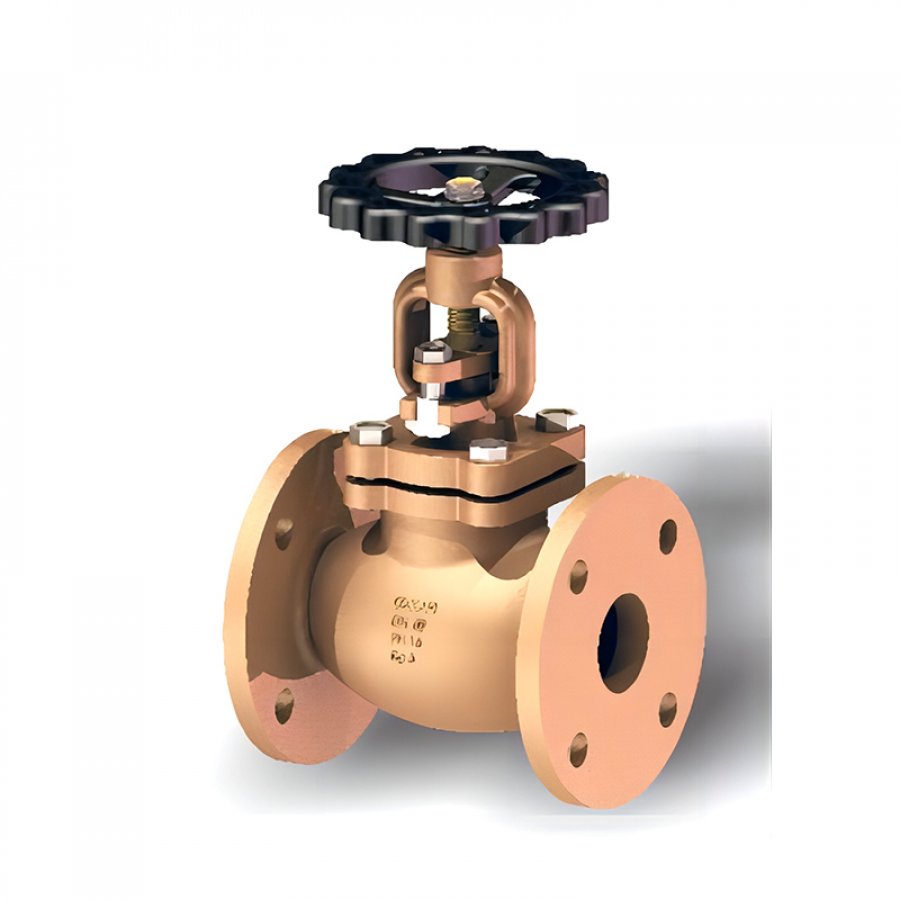

GLOBE VALVE-STRAIGHT BOLTED BONNET SPECIAL LENGTH-STOP TYPE | PN10/PN16 | 15-200 | seawater,fresh water and wastewater. |
Материал основных частей:
Item | Parts Name | Material |
1 | Body | Bronze |
2 | Stem/seat | Bronze |
3 | Design | Special design,STOP type |
4 | Face to Face | Acc.to below mentioned dimension table |
5 | Flange Dimension | DIN Flanges acc.to EN 1092-3/A(DIN 2501) |
6 | Temperature | -10℃~+200℃ |
РАЗМЕРЫ:
DN（mm） | Pressue 0D rating (mm) | L（mm） | H（mm） | OR（mm） | Weight （kg） |
15 | PN 16 95 | 120 | 165 | 120 | 3.8 |
20 | PN 16 105 | 120 | 165 | 120 | 4.2 |
25 | PN 16 115 | 140 | 170 | 140 | 5.0 |
32 | PN 16 140 | 150 | 180 | 140 | 6.0 |
40 | PN 16 150 | 155 | 220 | 160 | 10 |
50 | PN 16 165 | 180 | 235 | 160 | 12 |
65 | PN 16 185 | 200 | 240 | 180 | 15 |
80 | PN 16 200 | 240 | 280 | 200 | 21 |
100 | PN 16 220 | 270 | 310 | 225 | 34 |
125 | PN 16 250 | 320 | 350 | 250 | 50 |
150 | PN 16 285 | 370 | 385 | 300 | 72 |
200 | PN 16 340 | 500 | 490 | 400 | 122 |
