Технические данные:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |

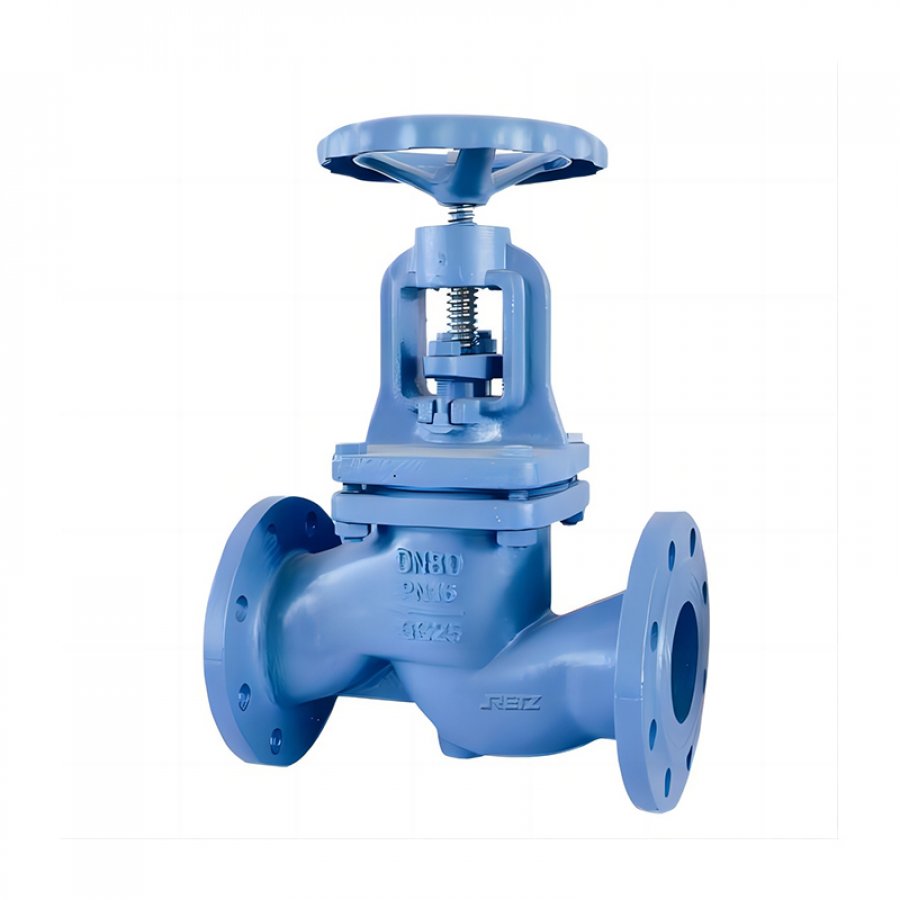

GLOBE VALVE-STRAIGHT-BOLTED BONNET DIN LENGTH-SDNR TYPE | PN4-PN16(as mentioned n DIN86251) | 15-600 | water,ol andsteam. |
Material of Main Parts:
Item | Parts Name | Material |
1 | Body | Cast iron /Ductile iron |
2 | Stem/seat | Bronze or Stainless steel |
3 | Design | DIN86251 STOP Type (DIN 3356） |
4 | Face to Face | EN558 Series 1(DIN3202F1) |
5 | Flange Dimension | DIN Flanges acc.to EN 1092-2/B(DIN 2501) |
6 | Temperature | -10℃~+180℃(as mentioned n DIN86251) |
РАЗМЕРЫ:
DN（mm） | OD PN10 | OD PN16 | L（mm） | H（mm） | OR（mm） | Weight （kg） |
15 | 95 | 95 | 130 | 165 | 120 | 3.8 |
20 | 105 | 105 | 150 | 165 | 120 | 4.0 |
25 | 115 | 115 | 160 | 175 | 140 | 5.0 |
32 | 140 | 140 | 180 | 180 | 140 | 7.0 |
40 | 150 | 150 | 200 | 220 | 160 | 11 |
50 | 165 | 165 | 230 | 230 | 160 | 13 |
65 | 185 | 185 | 290 | 245 | 180 | 18 |
80 | 200 | 200 | 310 | 295 | 200 | 25 |
100 | 220 | 220 | 350 | 330 | 225 | 35 |
125 | 250 | 250 | 400 | 365 | 250 | 55 |
150 | 285 | 285 | 480 | 420 | 300 | 75 |
175 | 315 | 315 | 550 | 500 | 400 | 115 |
200 | 340 | 340 | 600 | 510 | 400 | 135 |
250 | 395 | 405 | 730 | 600 | 520 | 215 |
300 | 445 | 460 | 850 | 670 | 520 | 305 |
350 | 505 | 520 | 980 | 755 | 640 | 405 |
400 | 565 | 580 | 1100 | 835 | 640 | 550 |
450 | 615 | 640 | 1200 | 920 | 640 | 690 |
500 | 670 | 715 | 1250 | 970 | 640 | 835 |
600 | 780 | 840 | 1450 | 1200 | 640 | 1050 |
