Технические данные:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |

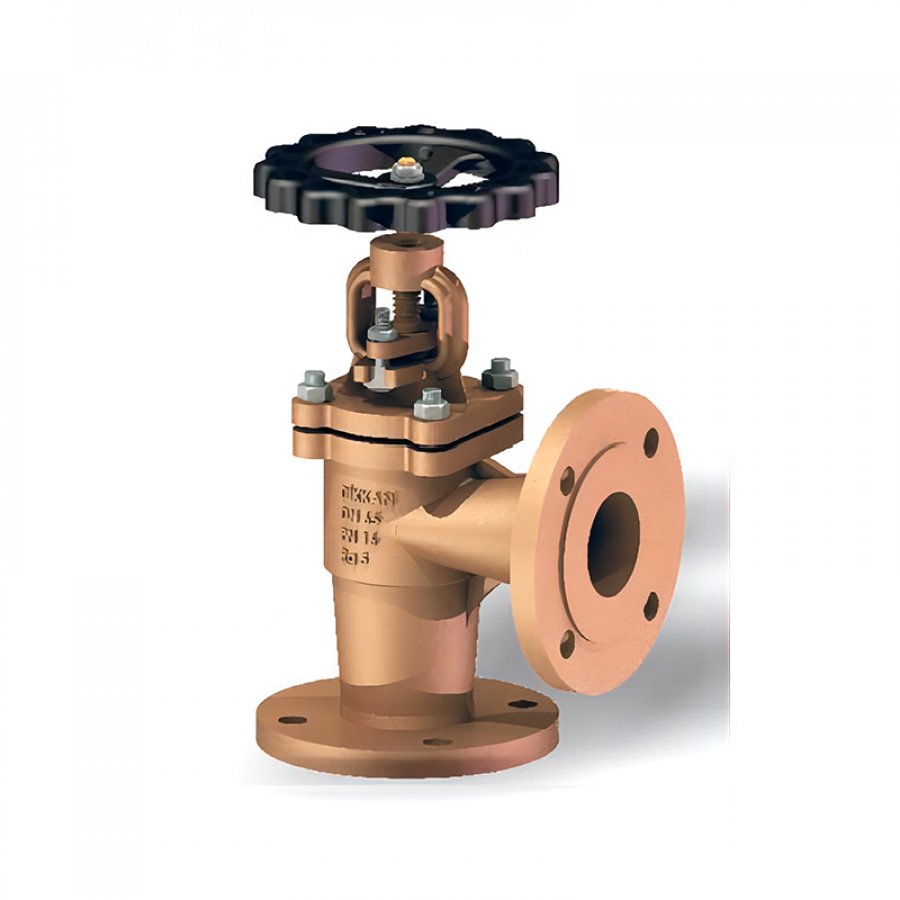

GLOBE VALVE-ANGLE-BOLTED BONNET SPECIAL LENGTH-SDNR TYPE | PN10-PN16 | 15-200 | seawater,freshwater and wastewater. |
Материал основных частей:
Item | Parts Name | Material |
1 | Body | Bronze |
2 | Stem/seat | Bronze |
3 | Design | Special design,STOP type |
4 | Face to Face | Acc.to below mentioned dimension table |
5 | Flange Dimension | DIN Flanges acc.to EN 1092-3/A(DIN 2501) |
6 | Temperature | -10℃~+200℃ |
РАЗМЕРЫ:
DN（mm） | Pressue OD rating (mm) | L1（mm） | H（mm） | OR（mm） | Weight （kg） |
15 | PN 16 95 | 65 | 155 | 120 | 3.6 |
20 | PN 16 105 | 65 | 155 | 120 | 4.0 |
25 | PN 16 115 | 70 | 155 | 140 | 4.5 |
32 | PN 16 140 | 90 | 160 | 140 | 5.5 |
40 | PN 16 150 | 90 | 295 | 160 | 9.0 |
50 | PN 16 165 | 105 | 205 | 160 | 11 |
65 | PN 16 185 | 115 | 215 | 180 | 15 |
80 | PN 16 200 | 125 | 245 | 200 | 20 |
100 | PN 16 220 | 145 | 275 | 225 | 28 |
125 | PN 16 250 | 170 | 305 | 250 | 42 |
150 | PN 16 285 | 200 | 340 | 300 | 65 |
200 | PN 16 340 | 250 | 570 | 400 | 90 |
