Технические данные:
Standard | Nominal Pressure | Nominal Diameter | Applicable Medium |

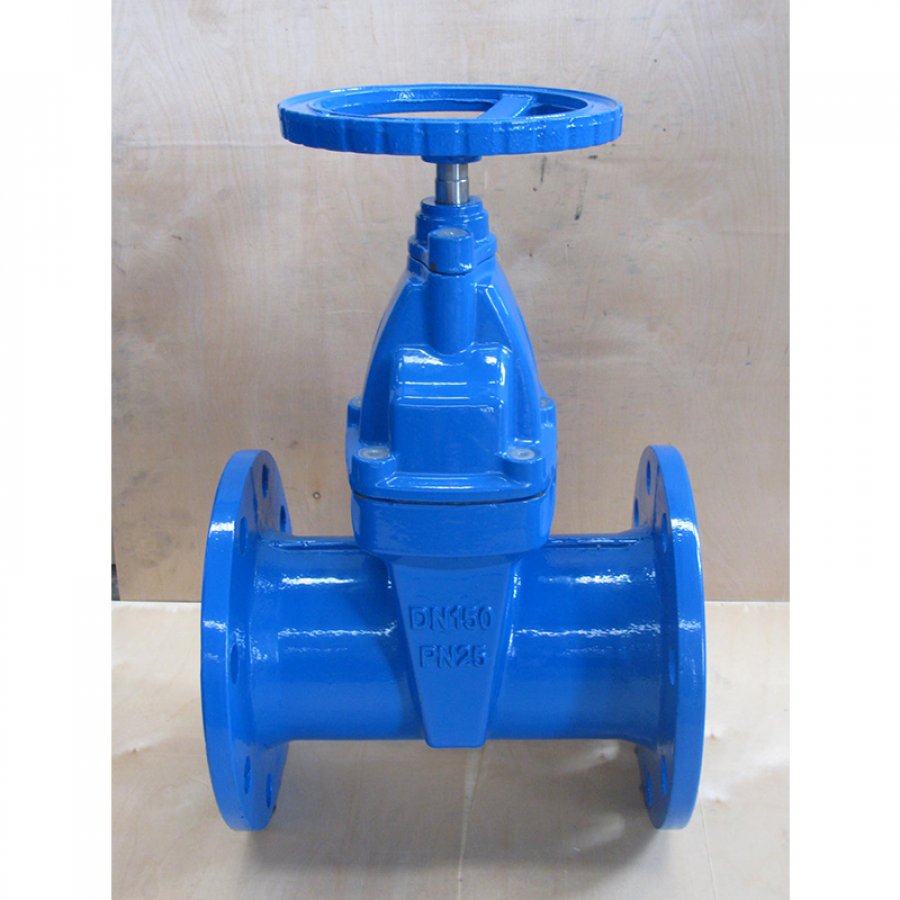

GATE VALVE-NON RISING STEM LONG TYPE-F5-PN25 | PN25/PN40 | 40-1000 | water.Higher pressure applications. |
Материал основных частей:
Item | Parts Name | Material |
1 | Body | Ductile iron |
2 | Stem/seat | Bronze or Stainless stedl |
3 | Design | DIN3352 T2 |
4 | Face to Face | EN558 Series 15(DIN3202F5) |
5 | Flange Dimension | DIN Flanges acc.to EN 1092-B(DIN 2501) |
6 | Temperature | -10℃~+120℃ |
РАЗМЕРЫ:
DN（mm） | OD PN25 | OD PN40 | L（mm） | H（mm） | OR（mm） | Weight （kg） |
40 | 150 | 150 | 240 | 240 | 200 | 13 |
50 | 165 | 165 | 250 | 250 | 200 | 14 |
65 | 185 | 185 | 270 | 275 | 250 | 19 |
80 | 200 | 200 | 280 | 285 | 250 | 25 |
100 | 235 | 235 | 300 | 315 | 315 | 32 |
125 | 270 | 270 | 325 | 415 | 315 | 50 |
150 | 300 | 300 | 350 | 435 | 315 | 62 |
200 | 360 | 375 | 400 | 580 | 400 | 110 |
250 | 425 | 450 | 450 | 715 | 500 | 170 |
300 | 485 | 515 | 500 | 770 | 500 | 240 |
350 | 555 | 580 | 550 | 870 | 500 | 340 |
400 | 620 | 660 | 600 | 950 | 630 | 450 |
450 | 675 | 685 | 650 | 1066 | 630 | 590 |
500 | 730 | 755 | 700 | 1210 | 800 | 790 |
600 | 845 | 890 | 800 | 1340 | 800 | 1070 |
700 | 960 | 995 | 900 | 1560 | 800 | 1350 |
800 | 1085 | 1140 | 1000 | 1690 | 800 | 2300 |
900 | 1185 | 1250 | 1100 | 2010 | 1000 | 3300 |
1000 | 1320 | 1360 | 1200 | 2190 | 1000 | 4330 |
